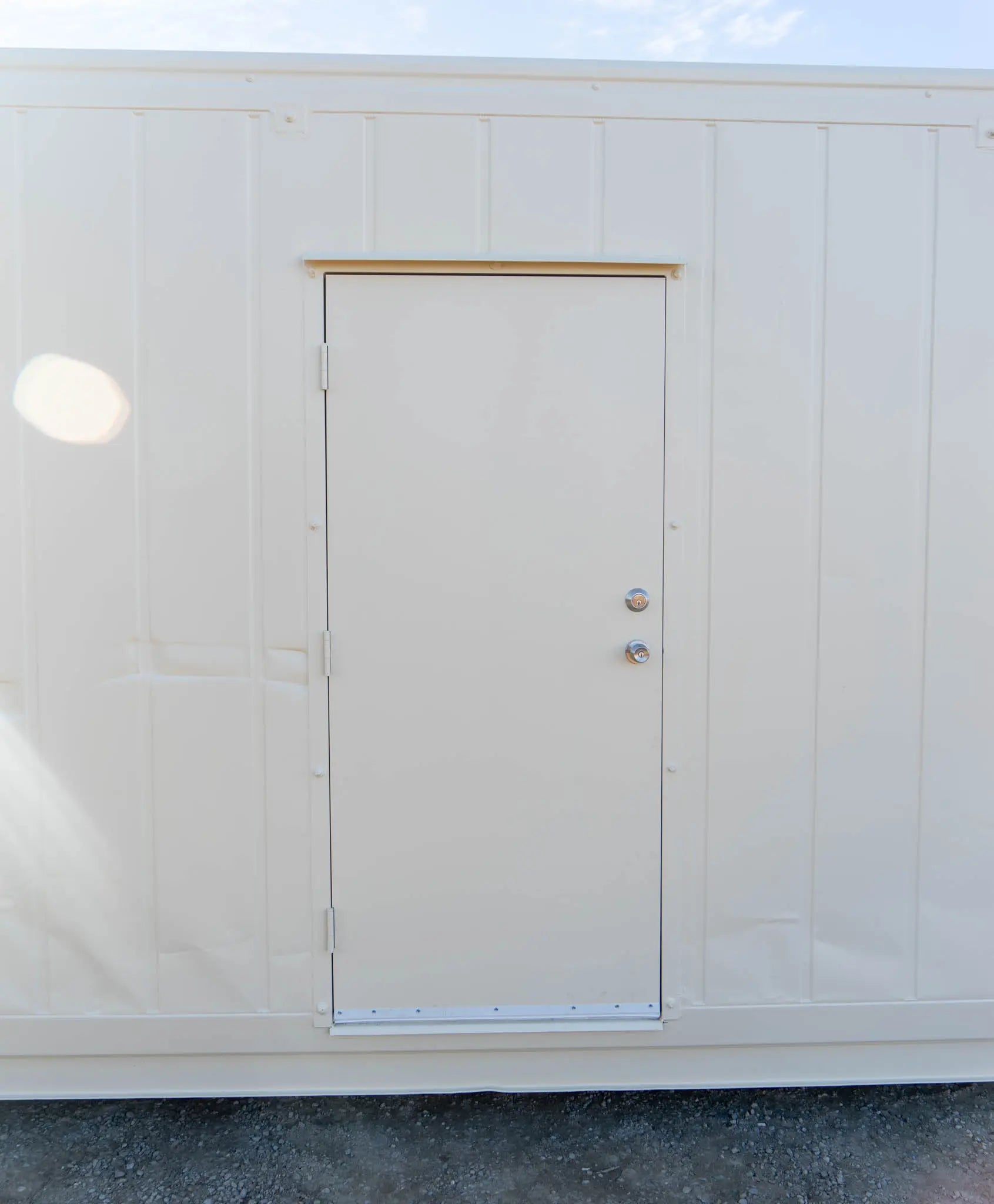

36” Steel Security Personnel Door on a Refrigerated Container

3068 Flush Steel commercial door – steel frame – dual prep 16GA(1.5mm), 18GA(1.1mm) A40 Galvanized Or Cold-rolled Steel Skins build is 1-3/4′ 45mm Thickness Hinge, closer, lock and strike plate reinforcements shall be provided. Hinge reinforcement: 10GA (3.5mm) Closer reinforcement: 12G A (2.5mm) Lock reinforcement: 16GA (1.5mm) Strike plate reinforcement: 16GA (1.5mm) The top, bottom and side closures are fabricated from 16GA (1.5mm)thick channel shaped steel sectionswelded to the front and back door skins Flush top channel:16GA/1.5mm) Laser-welded side-seamed edges Polystyrene core
